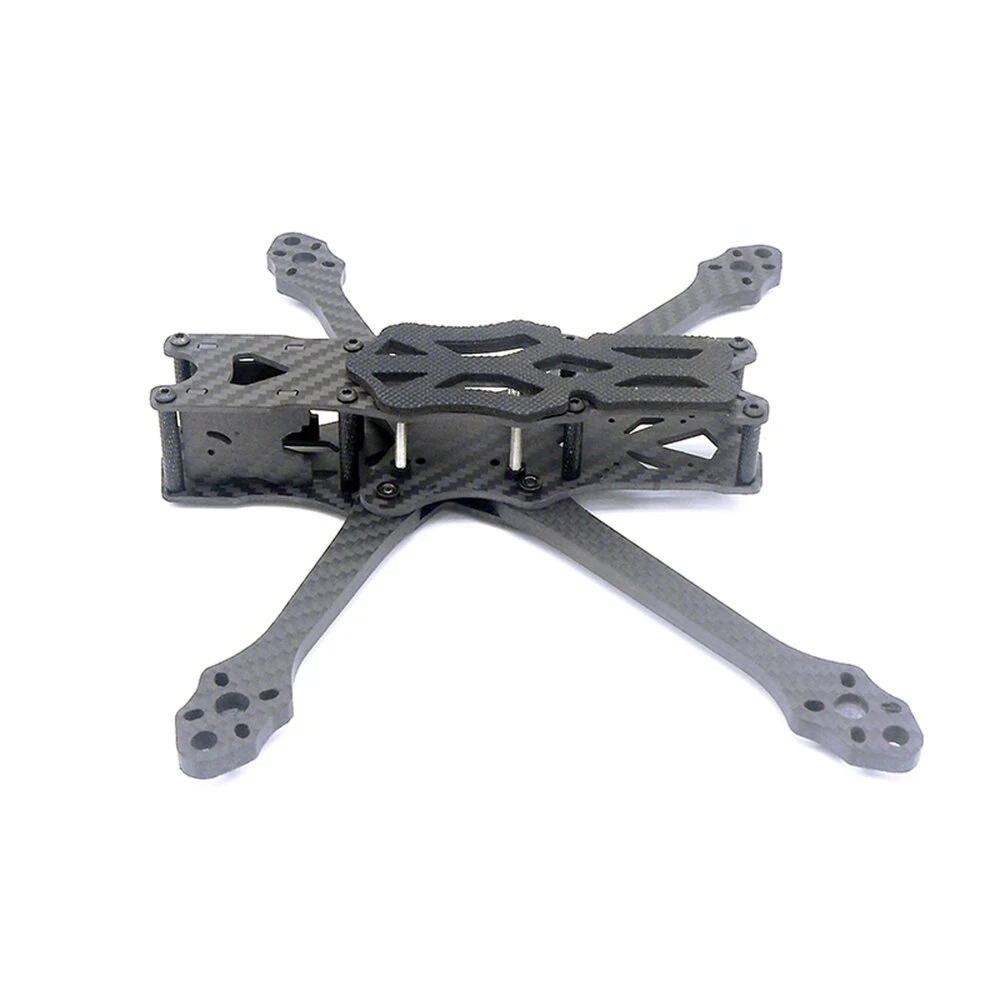

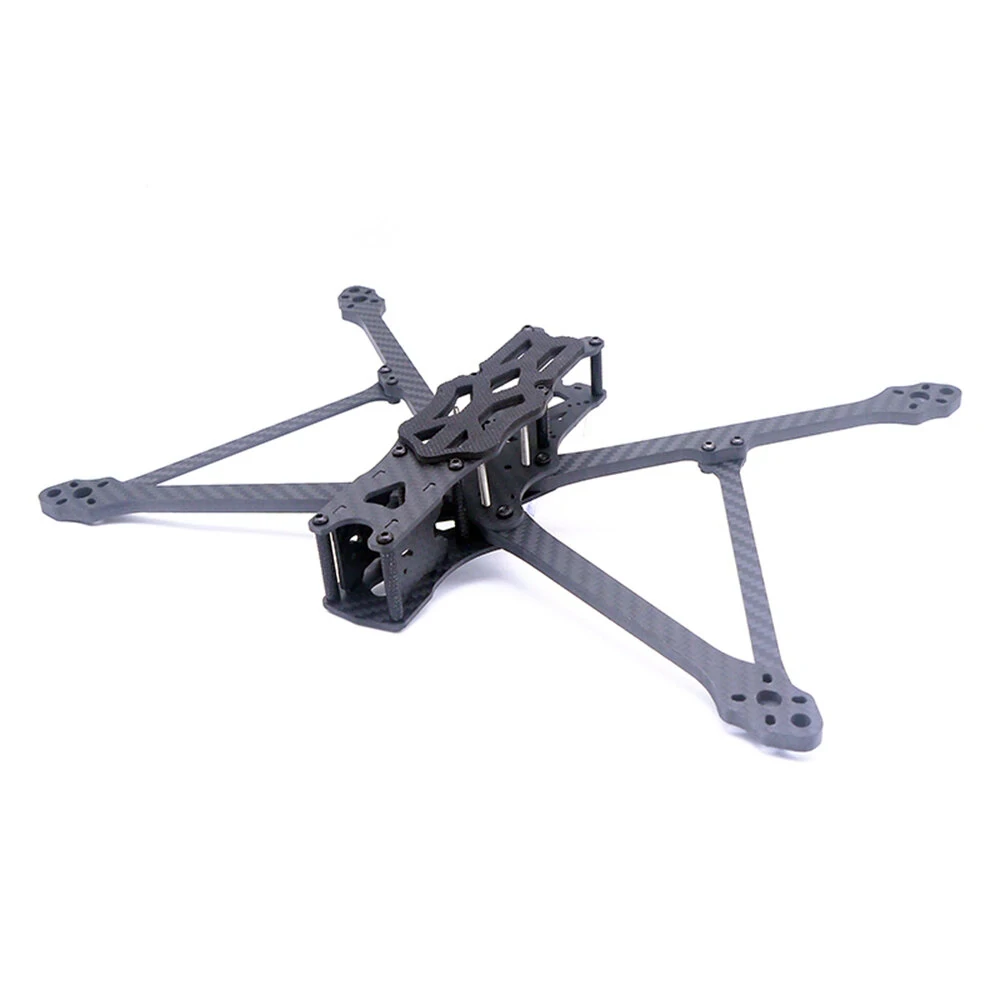

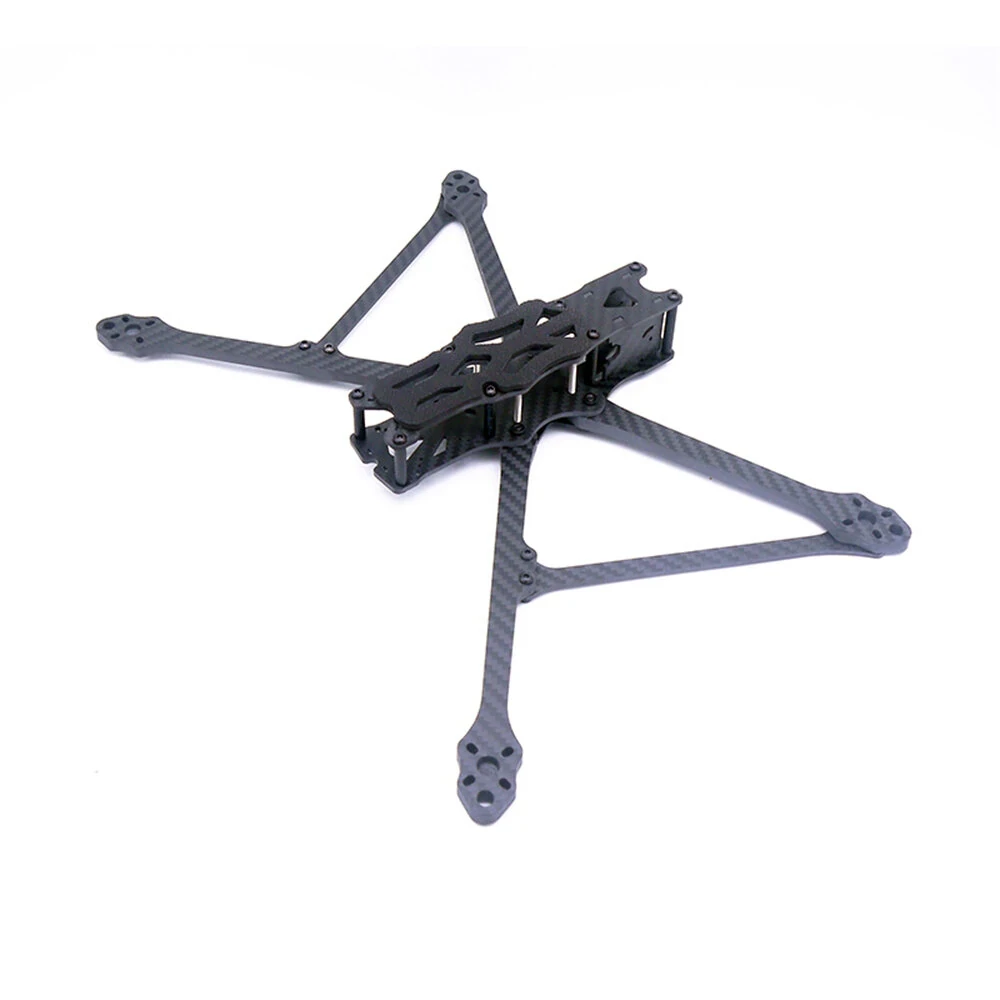

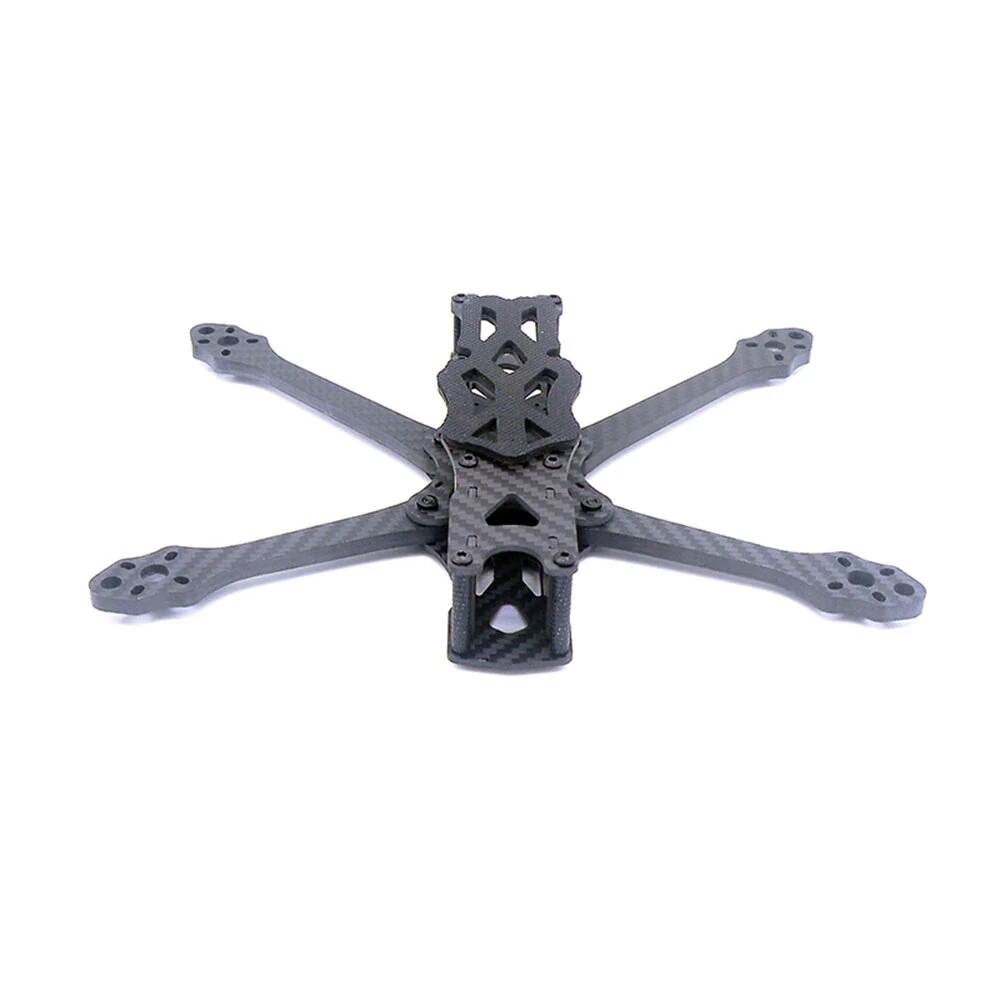

TEOSAW APEX DC5 245mm Wheelbase 5 Inch / DC7 340mm Wheelbase 7 Inch Frame Kit Co

About this product

ice: 1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc. 2. It Comes unassembled. Need build by buyers. Specifications: Brand: TEOSAW Model: APEX DC5/DC7 Item Name: 5 Inch/7 Inch Frame Kit Model: APEX DC5 APEX DC7 Wheelbase: 245mm 340mm Appearance Size: 187mm x 230mm x 35mm 222mm x 309mm x 35mm Weight: Approx.138g Approx.170g Structure: DC Structure Thickness: Arm 5.5mm, Bottom Plate 2.5mm, Splint 2.5mm, Upper Plate 2.0mm, Side Plate 2.0mm Applicable Propeller Size: 5-5.1 inch 7 inch Flight Controller Mounting Hole: 20*20mm（M3），30.5*30.5mm（M3） VTX Mounting Hole: 20*20mm（M2），25.5*25.5mm（M2） Camera Installation Width: 20mm/19mm Internal Height: 约20-28mm Motor Installation Mounting Hole: 16*16mm（M3），19mm*19mm（M3） Compatible VTX: DJI O3 Air Unit/VISTA Sky Unit/Analog, etc. Sheet Material: 3K（T700） Feature: 1. Lightweight and Portable: Weighing approximately 138g/170g, the DC5/DC7 drone frame is incredibly lightweight, enabling easy portability and efficient flights. 2. Versatile Camera Mount: Equipped with a 20mm/19mm camera mount, providing versatility for different camera setups and optimal viewing angles. 3. Easy Installation: Features multiple mounting holes and an internal height of 20-28mm, allowing easy installation of various electronics and flight controllers. 4. Perfect Compatibility: Compatible with DJI O3 Air Unit and VISTA, designed to fit motors ranging from 5-7 inches, ensuring seamless integration with popular drone components Package included: 1x APEX DC5/APEX DC7 Frame
